Caldwell View PNS (15° Caudad PA Axial Projection)

The Caldwell View PNS (15° Caudad PA Axial Projection) is the gold-standard radiographic view designed specifically to evaluate the frontal sinuses and anterior ethmoid air cells. Directing the central ray with a 15⁰ caudal angulation projects the dense petrous ridges of the temporal bones into the lower third of the orbits, leaving the frontal sinuses, orbital margins, and upper two-thirds of the orbits completely unobstructed.

1. Clinical Indications & Contraindications

Detailed Indications:

• Paranasal Sinus Pathologies (Frontal & Ethmoidal):
  • Acute & Chronic Sinusitis: Detection of mucosal thickening (>4 mm) along the sinus periphery), air-fluid levels (requires an erect position with a horizontal central beam), and complete sinus opacification.
  • Frontal Sinus Mucoceles & Retention Cysts: Expansion, osteolytic thinning, or erosion of the anterior/posterior cortical sinus walls.
  • Frontal Sinus Osteomas: Benign, dense radiopaque bone masses arising within the frontal air cavities.
• Maxillofacial & Orbital Trauma:
  • Fractures of the superior orbital rim / orbital roof and supraorbital margins.
  • Fractures of the lamina papyracea (paper-thin lateral wall of the ethmoid labyrinth).
  • Visualization of the superior orbital fissures, foramen rotundum, and the greater and lesser wings of the sphenoid.
• Cranial Symmetry & Bone Lesions:
  • Assessment of the crista galli, vertical plate of the ethmoid, and metopic suture closure.
  • Congenital hypoplasia or aplasia (absence) of one or both frontal sinuses.

Contraindications & Limitations:

• Unstable Cervical Spine Trauma: Absolute contraindication for prone or forward-flexed erect positioning. If C-spine injury is unconfirmed, perform a Reverse Caldwell View (AP Axial 15⁰ Cephalad) in the supine position without moving the head or neck.
• Maxillary Sinus Floor Assessment (Limitation): The petrous pyramids completely overlap the lower two-thirds of the maxillary antra and nasal fossa. The Waters View is required to evaluate the maxillary sinuses.
• Sphenoid Sinus Evaluation (Limitation): Sphenoid sinuses are superimposed behind the ethmoidal complex and upper nasal cavity.

2. Technical Factors

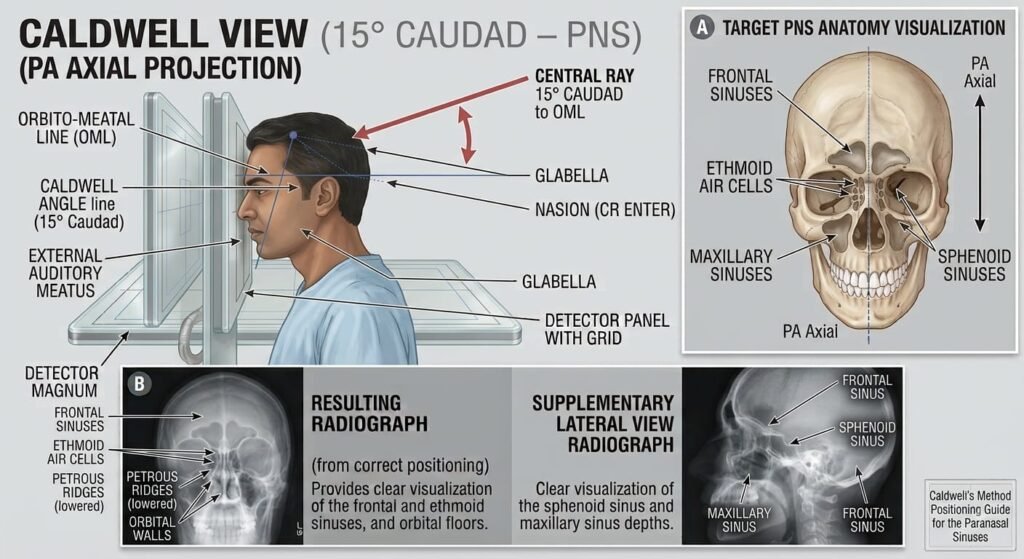

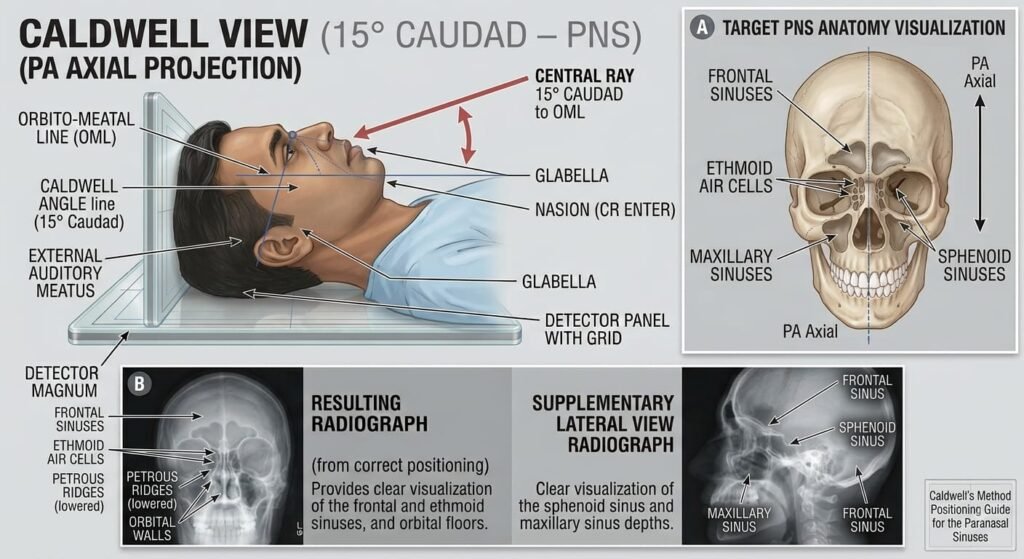

3. Step-by-Step Patient & Part Positioning

                 [ Vertical Bucky Surface ]
                           ║
       (Nasion Level) ◄─── ║ ◄── Forehead & Nose touching Bucky
                           ║
                    /──────║──────\
                   │  OML  ║       │ ◄── OML strictly Perpendicular (90°) to IR
                   │ ──────║────── │
                   │  MSP  ║       │ ◄── Mid-Sagittal Plane Perpendicular to IR
                    \      ║      /
                           ║
                          /
                         /  15° Caudad Tube Tilt
                        ▼
               [ Central Ray: 15° Caudad ]
                 (Exits at the Nasion)

• Patient Preparation: Remove all metallic and radiopaque objects (hairpins, clips, spectacles, earrings, nose pins, dentures, necklaces, and hearing aids).
• Base Posture: Patient sits or stands erect facing the vertical Bucky with their back straight and shoulders leveled to prevent torso tilting.
• Alignment of Reference Lines & Points:
  1. Forehead & Nose Contact: Rest the patient’s forehead and the tip of the nose firmly against the surface of the upright Bucky.
  2. Orbitomeatal Line (OML): Flex or extend the patient’s neck until the OML is strictly perpendicular (90⁰) to the plane of the image receptor.
  3. Mid-Sagittal Plane (MSP): Must be strictly perpendicular to the midline of the grid (ensures zero left or right head rotation).
  4. Interpupillary Line (IPL): Must be parallel to the floor and image receptor surface (ensures zero lateral head tilt).

4. Central Ray (CR), Tube Angle & Collimation

• Central Ray (CR) Angle: 15⁰ Caudad (angled downwards toward the feet).
• Alternate Angle Technique (True Calvarium vs. Sinus):
  • Standard Caldwell for Sinuses: 15⁰ Caudad (petrous ridges in lower 1/3 of orbits).
  • Orbital Fissure / Floor Modified Caldwell: 25⁰ to 30⁰ Caudad (completely clears petrous ridges below the orbital floors).
• CR Entry / Exit Point: Enters the occipital region posteriorly and exits at the Nasion (the midline junction of the frontal and nasal bones).
• Collimation: Four-sided collimation adjusted tightly:
  • Superiorly: Just above the upper margin of the frontal sinuses.
  • Inferiorly: Below the alveolar ridge of the maxilla.
  • Laterally: To the outer skin margins of the orbits and zygomatic bones.

5. Common Positioning Errors & Radiographic Signs

6. Radiographic Anatomy & Quality Evaluation Criteria

+───────────────────────────────────────────────────────────────────────────+
|                               Frontal Bone                                |
|                                                                           |
|                    /─── FRONTAL SINUSES (Clear) ───\                      |
|                   │       [ · · · ]   [ · · · ]     │                     |
|                   │                                 │                     |
|                   │    Crista Galli / Ethmoid Air   │                     |
|                   \─────────────────────────────────/                     |
|                                                                           |
|                 [   ORBIT   ]             [   ORBIT   ]                   |
|                /  (Upper 2/3) \          /  (Upper 2/3) \                 |
|               |  Clear Aeration|        |  Clear Aeration|                |
|               |════════════════|        |════════════════|                |
|               | ▓▓▓ PETROUS ▓▓▓|        | ▓▓▓ PETROUS ▓▓▓|                |
|                \ (Lower 1/3)  /          \ (Lower 1/3)  /                 |
|                 \____________/            \____________/                  |
|                                                                           |
|                           [ Maxillary Antra ]                             |
|                        (Superimposed by Petrous)                          |
+───────────────────────────────────────────────────────────────────────────+

• Petrous Ridge Projection (Primary Quality Benchmark): Symmetrical petrous pyramids projected cleanly into the lower third of the orbits bilaterally.
• Frontal Sinuses: Completely clear, unobstructed visualization of the frontal sinuses above the nasal bones and crista galli with distinct bony cortical margins.
• Ethmoid Air Cells: Clear visualization of the anterior ethmoid air cells situated between the medial orbital walls and the superior nasal septum.
• Rotational Symmetry:
  • Equal distance between the lateral orbital rims and the lateral calvarial borders on both sides.
  • Crista galli and the vertical plate of the ethmoid aligned in the midline.
• Tissue Contrast & Sharpness: Sharp trabecular detail across the orbital roofs, supraorbital margins, and ethmoidal labyrinths with no motion artifacts.
