The Axiolateral Oblique View of Mandible is an essential diagnostic projection designed to isolate and evaluate one side of the mandible in profile without superimposition from the opposite (contralateral) mandibular ramus or body.
By combining specific degrees of patient head rotation with a cephalad tube angulation, a specific anatomical region of interest (Ramus, Body, or Symphysis/Mentum) is placed parallel to the image receptor.
1. Clinical Indications & Contraindications
Detailed Indications:
- Mandibular Trauma & Fractures:
- Assessment of unilateral fractures involving the mandibular ramus, angle (gonion), body, or symphysis/parasymphysis.
- Detection of displaced cortical fragments and step-deformities.
- Odontogenic & Bone Pathologies:
- Evaluation of benign and malignant bone lesions: Ameloblastoma, Odontogenic Keratocysts (OKC), dentigerous cysts, and cementomas.
- Evaluation of impacted third molars (wisdom teeth) and their relationship to the inferior alveolar (mandibular) canal.
- Infections & Inflammatory Disorders:
- Assessment of osteomyelitis, osteoradionecrosis, and periapical abscesses with bone resorption.
- Identification of sialolithiasis (calculi in the submandibular salivary gland or Wharton’s duct) superimposed over the mandibular base.
- Alternative to Panoramic Radiography (OPG):
- Serves as the primary alternative when an Orthopantomograph (OPG) machine is unavailable or when the patient is trauma-bound/cannot stand in a panoramic unit.
Contraindications & Limitations:
- Unstable Cervical Spine Trauma: Extreme head rotation or lateral head tilt is strictly contraindicated. In acute trauma, keep the patient supine with zero neck rotation, place the cassette alongside the face, and combine a horizontal-beam lateral with tube angulation.
- Bilateral Assessment (Limitation): Only demonstrates the side of interest (side down). The contralateral side must be imaged separately for comparison.
2. Technical Factors & Exposure Physics
| Parameter | Recommended Specification | Radiographic Rationale |
| Patient Posture | Semi-Prone / Erect (Seated) | Erect positioning provides the most natural control over head rotation and tilt |
| Image Receptor (IR) | 18 × 24 cm or 24 × 30 cm(Landscape/Crosswise) | Sized to accommodate mandibular body, ramus, and gonion |
| SID | 100 to 115 cm ( 40 to 44 inches) | Standard geometry to maintain focal sharpness |
| Grid Usage | Grid or Non-Grid (Tabletop) | Grids preferred for dense adults; non-grid can be used with low kVp if grid cutoff risk is high |
| Tube Potential (kVp) | 65 – 75 kVp | High-contrast resolution to differentiate bone cortex from dental pulp cavities |
| mAs Range | 10 – 20 mAs | Calibrated based on lateral soft-tissue and bone thickness |
| Focal Spot | Small (0.6 mm) | High spatial resolution for fine trabecular and mandibular canal margins |
| Breathing | Suspended respiration | Eliminates respiratory and swallowing motion artifacts |
3. Anatomical Head Rotation Rules (The “Rule of Head Angles”)
The degree of patient head rotation away from a true lateral position determines which section of the mandible is projected free of superimposition:
| Target Region / Anatomy of Interest | Head Rotation (from True Lateral toward IR) | Central Ray (CR) Angulation | Structures Visualized Free of Superimposition |
| Mandibular Ramus | 0° (True Lateral) | 25⁰ Cephalad | Ascending ramus, condylar neck/process, coronoid process, and mandibular notch |
| Mandibular Body | 30⁰ toward the IR | 25⁰Cephalad | Mandibular body from angle to canine region, inferior border, and molar/premolar roots |
| Mentum / Symphysis | 45⁰ toward the IR | 25⁰ Cephalad | Anterior symphysis menti, mental protuberance, mental foramen, and incisor region |
| General Mandibular Survey | 10⁰ – 15⁰ toward the IR | 25⁰ Cephalad | Broad overview demonstrating both the posterior body and lower ramus together |
Key Rule of Thumb:
- 0⁰ = Ramus (Posterior-most anatomy)
- 30⁰ = Body (Middle anatomy)
- 45⁰ = Symphysis (Anterior-most anatomy)
Always ensure the patient’s chin is extended forward to clear the mandibular angle from superimposing over the cervical spine.
4. Step-by-Step Positioning & Central Ray Protocols
Technique 1: Tube Angle Method (Most Common)
Technique 1: Tube Angle Method (Most Common)

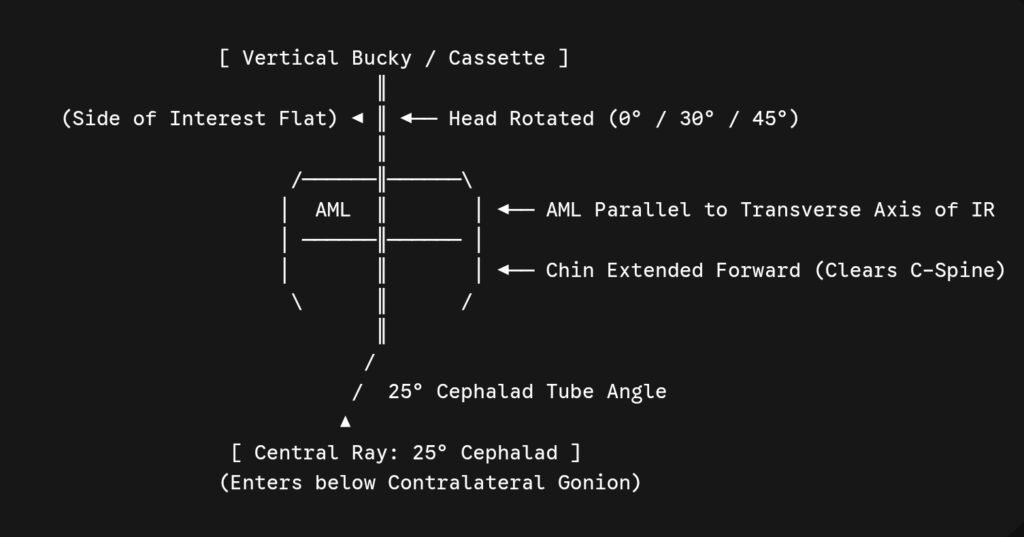

- Starting Position: Seat or place the patient in a semi-prone position. Place the affected side against the image receptor.
- Neck Extension: Instruct the patient to extend their chin forward. This is a critical step to separate the mandible from the cervical spine.
- Head Rotation: Rotate the patient’s head toward the IR according to the region of interest:
- 0⁰ (True Lateral): For the Ramus.
- 30⁰ Rotation: For the Body.
- 45⁰ Rotation: For the Symphysis (Mentum).
- Alignment: Ensure the Acanthiomeatal Line (AML) is parallel to the transverse axis of the IR.
- Central Ray (CR):
- Angle: 25⁰ Cephalad (angled towards the head).
- Entry Point: Enters the inferior surface of the neck, approximately 2 cm (0.75 inch) inferior to the gonion of the opposite (upside) mandible, passing through the center of the mandibular region of interest on the side closest to the IR.
Technique 2: Combination Method (Head Tilt + Tube Angle)
- Useful when tube angulation is limited or to minimize geometric distortion:
- Tilt the patient’s head 15⁰ laterally toward the IR.
- Angle the Central Ray 10⁰Cephalad (Total angle = 25⁰).
5. Positioning Errors & Radiographic Signs
| Error Type | Radiographic Sign on Film | Clinical Impact | Correction |
| Insufficient Chin Extension | The cervical spine superimposes over the mandibular ramus or angle. | Obscures bone fractures and cortical margins of the gonion. | Instruct patient to jut/thrust chin forward away from the neck. |
| Incorrect Head Rotation (e.g., < 30° when imaging the Body) | The contralateral (upside) mandibular body superimposes over the region of interest. | Dual-border overlap masks intraosseous lesions. | Ensure exact 30⁰ head turn toward the IR for body views. |
| Insufficient Cephalad Angle (< 25°) | Superimposition of both mandibular angles/bodies over each other. | Inability to separate right from left sides. | Increase cephalad tube angle to a full 25⁰. |
| Shoulder Elevation | Shoulder superimposes over the inferior border of the mandible. | Loss of bone trabecular visualization at the base. | Instruct patient to depress the upside shoulder down and relax. |

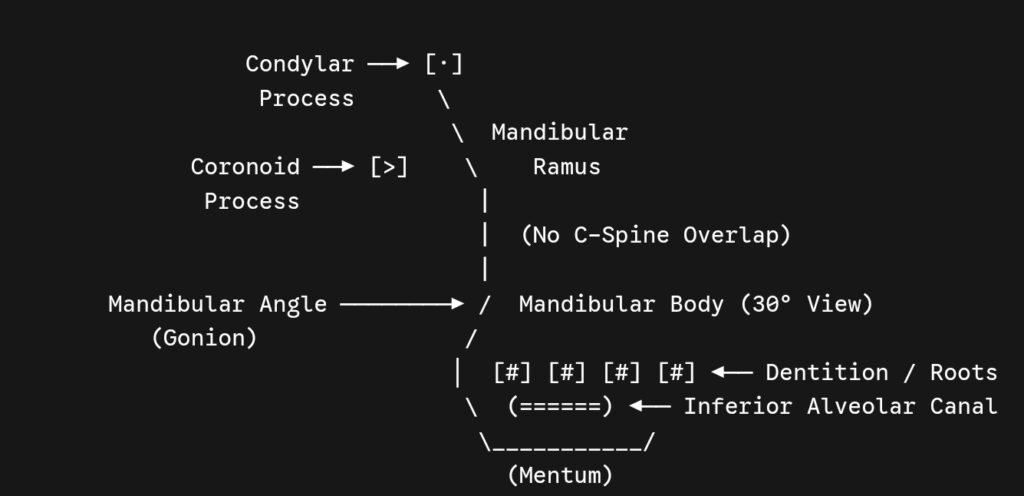

6. Radiographic Anatomy & Quality Evaluation Criteria
- Clear Separation of Halves: The mandibular region of interest (ramus, body, or symphysis) is projected completely free of superimposition from the opposite mandibular half.
- Cervical Spine Clearance: The mandibular ramus and body are projected anterior to the cervical spine without bony overlap.
- Regional Visualization:
- Ramus View (0⁰): Ascending ramus, condylar neck, coronoid process, and gonion clearly outlined.
- Body View (30⁰): Inferior border of the body, mandibular canal, and molar/premolar roots in profile.
- Symphysis View (45⁰): Mandibular symphysis, mental foramen, and incisor/canine regions demonstrated.
- Bony Detail & Contrast: Sharp cortical margins and trabecular patterns visible with no motion artifacts or shoulder shadows.
